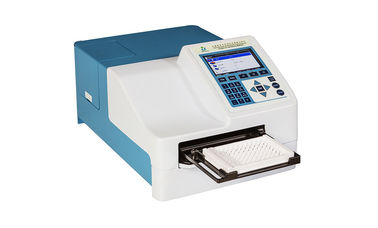

Semi Automatic Biochemistry Analyzer For Reproductive Medicine Male Infertility Test

Semi Automatic Biochemistry Analyzer For Reproductive Medicine Male Infertility Test

Product Details:

Place of Origin: China
Brand Name: BRED
Certification: CE, FDA, ISO13485
Model Number: SM-002

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 set per package
Delivery Time: 3 - 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 Set per year
Get Best Price Contact Now

Detail Information

Wavelength Range:: 340nm-850nm Test Sample: Blood, Semen Plasma
Detector: Silicon Photodetector Temperature: +4℃- 50℃
Name: Semi Auto Biochemistry Analyzer
Highlight:

male fertility home test kit

,

sperm motility test kit

Product Description

Semi-Automatic Biochemical-Immune Analyzer for Reproductive Medicine Male Infertility Test





Multiskan Ascent semi-automatic Analyzer is specialized in analyzing the biochemical and immune indices of seminal plasma and serum specimen in reproductive medicine. It is ideal for small reproductive and andrology laboratories and good for standardization of the laboratory.



Features:

  • The optical capabilities are good and the reading range is up to 6.0 OD. The wavelength range is from 340nm to 850nm. The in-built incubator can realize real-time temperature control and this ensures that the biochemical index and immune parameters are simultaneously tested.
  • The reading speed is high with only 9 seconds for a 96-well plate and 20 seconds for a 384-well plate.
  • The software is good for the test of seminal plasma and serum index. Modularization program. Easy to operate.
  • The HIS/LIS interface ensures informatization management of the laboratory

Applicable for the Tests Below:

  • Zinc level in seminal plasma (Zinc)
  • Citric acid level in seminal plasma (Citric)
  • Fructose level in seminal plasma (Fructose)
  • Acid phosphatase level in seminal plasma (ACP)
  • Sperm acrosin activity (Acrosin)
  • PMN - Elastase level in seminal plasma (Elastase)
  • Neutral alpha - glucosidase level in seminal plasma (NAG)
  • LDH - X (LDH - C4) level in semen (LDH - X)
  • Other items for biochemical and immune assay

Specifications:



Optical Capabilities
Wavelength Range: 340nm-850nm
Light Source: Halogen lamp, 6V/10W
Interference Filters: 8 position filter wheel, with standardized filters: 405, 450, 492, 620nm, optional standardized filters: 340, 414, 540, 690nm, and other unstandardized filter.
Filter Half Bandpass: 3-6nm
Photometric accuracy: +/-2nm
Detector: Silicon photodetector
Linear range: +/-1%
Detection range: 0 - 6 Abs
Absorbency: 0 - 6 Abs
Resolution: 0.001Abs
Accuracy: +/-1% or 0.003 Abs,better accuracy when 0~2 Abs.
Precision: CV<0.2%(0-3 Abs)
CV<1.0%(3-4Abs), stepping mode
CV<0.3%(0-3Abs)
CV<1.2%(2-3Abs), continuous mode
Time: 96 wells: 9s
384 wells: 20s, continuous mode
Optional incubator:
Temperature: Room temperature, +4℃- 50℃
Homogeneity: All wells, +/-0.2℃
Shaking: Linear shaking, three speeds
