Product Description

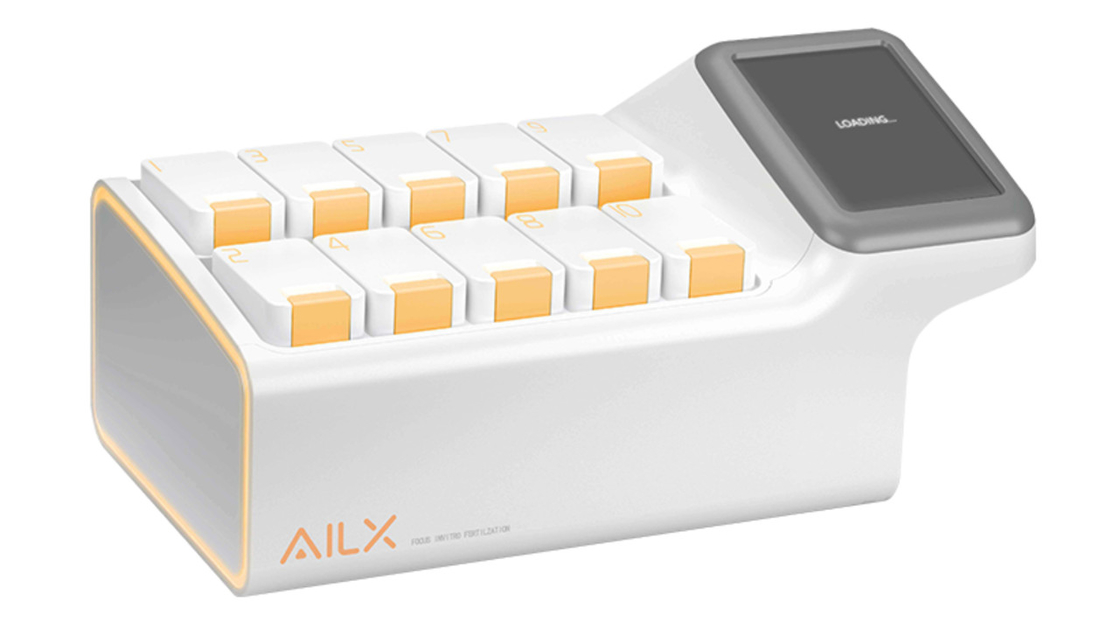

NEO

The era of artificial intelligence and automation in assisted reproductionProvide a personalized and undisturbed optimal culture environment for gametes and embryos

Time-Lapse System (TLS), also known as time-lapse photographic culture system, is an imaging
technology with instantaneous exposure and continuous shooting, which can record the whole
process of embryo development from fertilization blastocyst formation accurately, and condense
embryo information photos at different developmental stages into high-definition videos, in order
to show the changes of embryonic development in different time periods more intuitively. The
AlVFOTime-Lapse Incubator contains a built-in microscope with 20x magnification for more
detailed observation of embryonic development.

The incubator software system records data at the same time, which can display the operating

status of 10 culture chambers, including case information, culture duration, chamber temperature,

chamber pressure, and culture status of 16 embryos in the culture dish. Through multi-directional
data monitoring and observation, it helps embryologists to grade embryos more comprehensively.

   Time-Lapse System

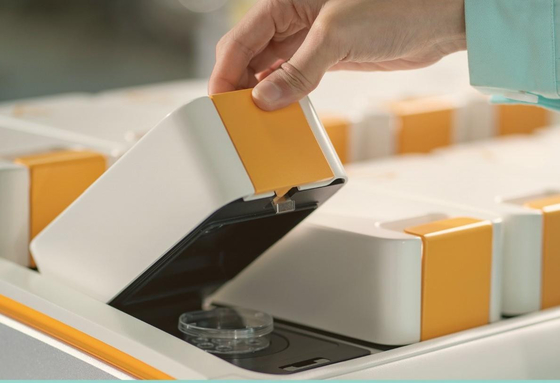

• Using 10 independent culture chambers, embryos are placed in a stable environment for independent culture
   to avoid interference from other chamber.
• 10 chambers operate independently, and non-culture chambers are in a prepared state.
  Separate use of culture dishes in each chamber or separate disassembly and maintenance will not affect the
  overall operation of the incubator.
•  Equipped with 12.3-inch high sensitivity precision touch display.
  Click the touch screen to view each embryo and the detailed data inside the chamber;No carton, no delay
  and the interface operation is smoother interface operation.

Faster And Clearer Imaging

•    Equipped with 10 independent cameras and took an all-round shot of the embryo at least every 5 minutes,
     Al automatically selects the clearest photos to form high-definition videos,which is convenient for intuitive
     observation of the dynamic process of embryo development and more comprehensive rating of the embryo.
•    Match with the AlVFO time lapse culture dish and the culture hole designed with inclined plane and microhole
     is convenient for placing embryos and discharging bubbles during embryo culture.
•    Culture dishes are made of sterile, non-toxic polymer materials, and has high transparency to make embryo
     imaging clearer.

Safer And More Stable Environment

•  Each of the 10 chambers is equipped with an independent high-precision platinum thermal resistance thermostat,
  which controls the upper and lower heating plates in the chamber accurately, keeping the temperature within the
  range of 37℃±0.2℃ .
• Chamber opening and closing feedback ≤1s, chamber pressure recovery time≤5s, temperature stabilization time≤1min.
• The monitoring system carries out independent real-time monitoring of temperature, air pressure and other data for each chamber to ensure the stability of the embryo culture environment.
